MiniRedone Series

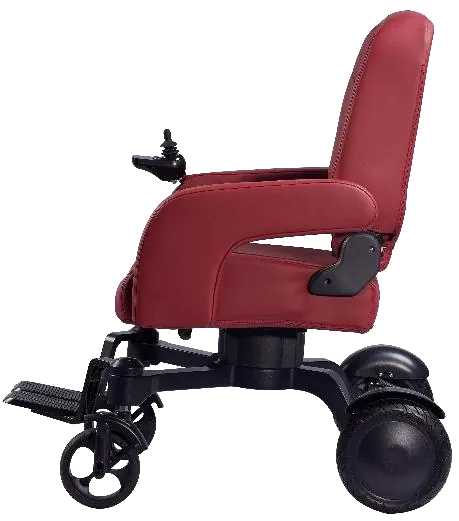

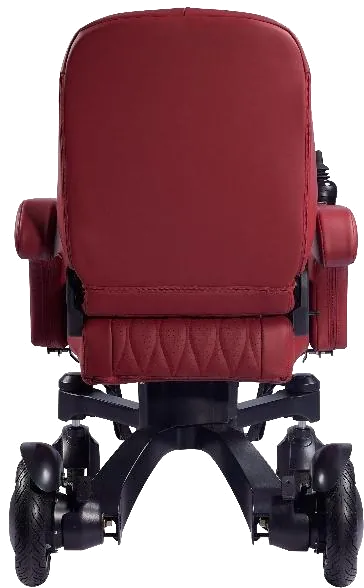

MiniElephant MiniRedone-I-R
Red edition : bold, vibrant, and full of energy
The MiniRedone-I-R is our striking Red Edition wheelchair. With its vibrant red accents and sleek black frame, this model makes a bold statement while delivering the same one-piece magnesium alloy die-cast frame, self-developed hub motors, and LiFePO₄ battery technology that defines the MiniRedone series.
Key Difference
Request QuotationRed edition
Technical Specifications
| Net Weight | 46 KG |
| Max Load | 150 KG |
| Range | ≈30 KM |
| Max Speed | ≤6 KM/H |
| Battery | 16Ah LiFePO₄ Lithium Battery |
| Motor | Dual 350W Self-developed Hub Motors |
| Frame Material | Magnesium Alloy (one-piece die-cast) |
| Folded Dimensions | L830×W675×H780 mm |
| Seat Dimensions | L1005×W675×H1020 mm |
| Color | Red Edition |
| Charging Time | 4-6 hours |
Key Features
- Bold Red Edition design with vibrant red accents
- One-piece magnesium alloy die-cast frame — no welding, superior strength
- Dual 350W self-developed hub motors : whisper-quiet, zero push resistance
- 16Ah LiFePO₄ battery : 30km range, 2000+ charge cycles
- Modular seat system compatible with multiple seat styles
- Pneumatic shock-absorbing front fork with gas spring
- Hand/foot dual brake system

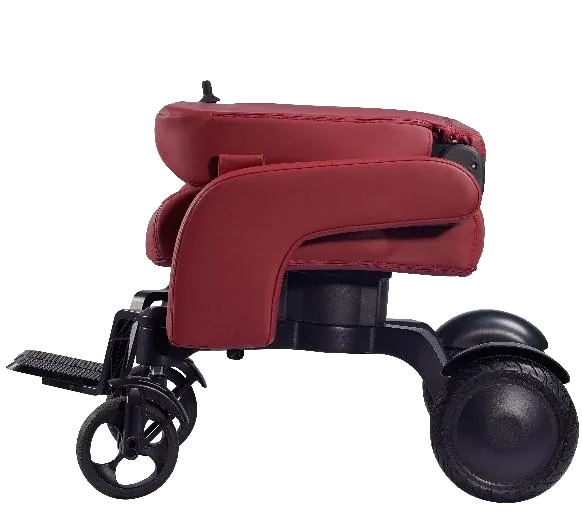

- Foldable frame for convenient storage
- Anti-tip wheels tested for 15° slope safety
