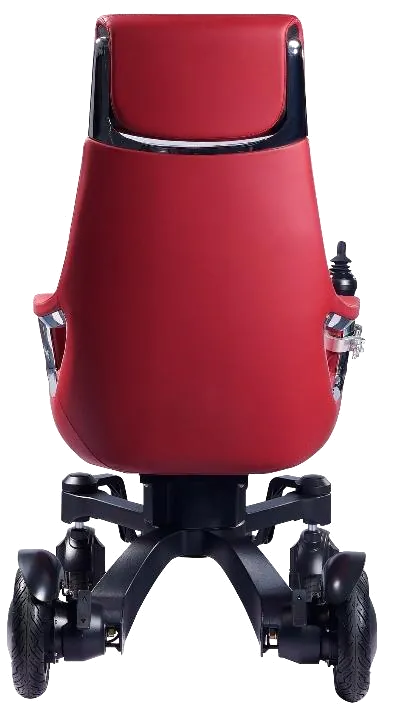

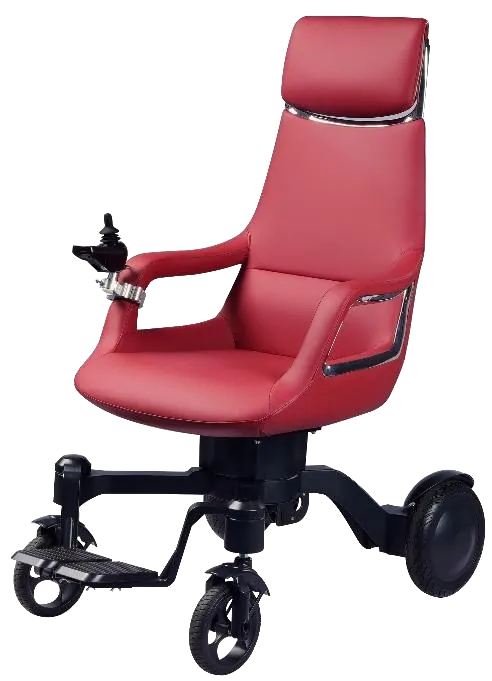

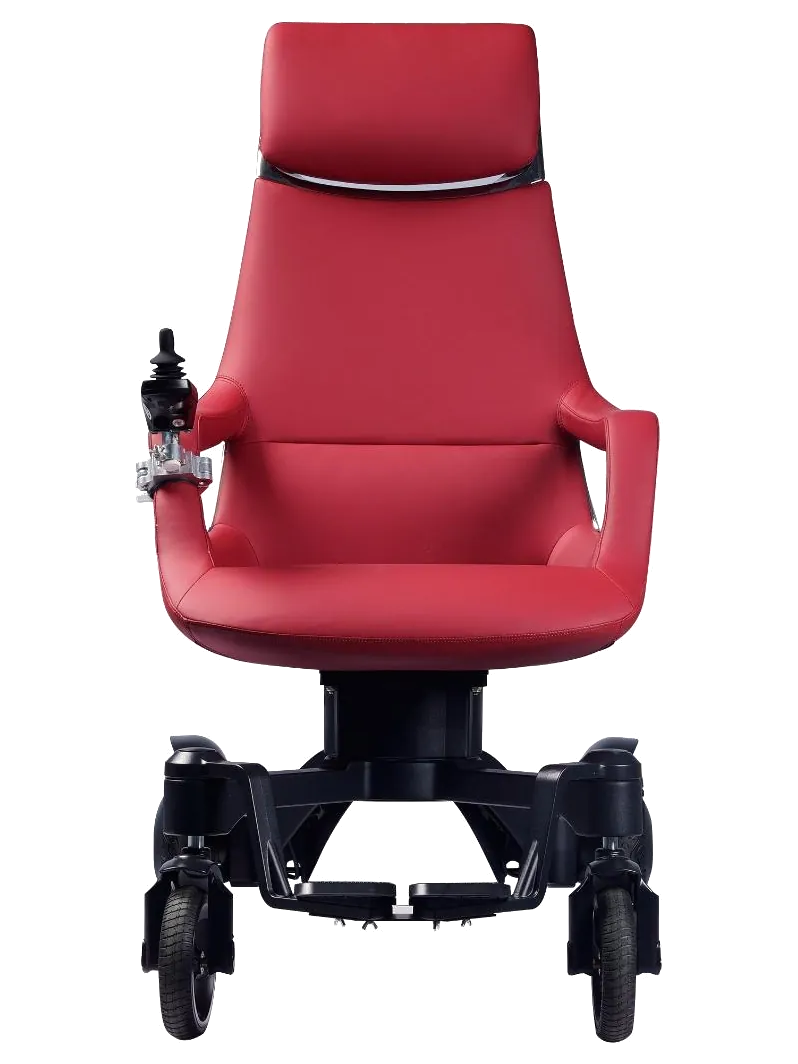

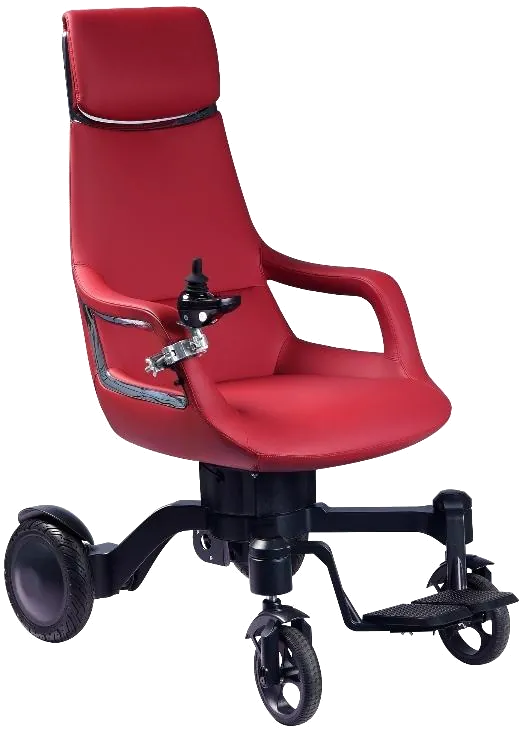

MiniElephant MiniRedone-IV Folding Electric Wheelchair
Folding electric wheelchair with tall-back seating configuration
MiniRedone-IV is a MiniRedone foldable electric wheelchair with tall-back seating configuration. This power wheelchair is listed at 43 KG, with folded dimensions of L830×W675×H1250 mm. Review the seating and controls for your premium mobility range; confirm the final configuration, storage space and transport arrangements before ordering.
Tall backrest (1250mm) at 43KG
Technical Specifications
| Net Weight | 43 KG |
| Max Load | 150 KG |
| Range | ≈30 KM |
| Max Speed | ≤6 KM/H |
| Battery | 16Ah LiFePO₄ Lithium Battery |
| Motor | Dual 350W Self-developed Hub Motors |
| Frame Material | Magnesium Alloy (one-piece die-cast) |
| Folded Dimensions | L830×W675×H1250 mm |
| Seat Dimensions | L1005×W675×H1250 mm |
| Back Height | Extra tall (1250mm) |
| Charging Time | 4-6 hours |
Key Features
- Extra tall 1250mm backrest for full back support
- Lightweight 43KG design
- One-piece magnesium alloy die-cast frame — no welding, superior strength
- Dual 350W self-developed hub motors : quiet brushless operation
- Manual maneuvering support is available when configured.
- 16Ah LiFePO₄ battery
- Modular seat system compatible with multiple seat styles
- Pneumatic shock-absorbing front fork with gas spring
- Hand/foot dual brake system
- Foldable with tall backrest
- Anti-tip wheels for added stability
Buyer resources
Before you buy the MiniRedone-IV: compliance, inspection and service.
Every MiniRedone-IV quotation sits inside the same B2B framework: import documents, quality inspection before shipment, spare parts support and an after-sales commitment. The last two guides cover this model's own selling points — range and battery, folding, transport and ride comfort.
Electric Wheelchair Spare Parts Planning Guide for B2B Buyers
A practical spare-parts planning guide for electric wheelchair importers, distributors, and mobility dealers.
Electric Wheelchair Battery Range: A B2B Buying Guide
A practical guide for distributors evaluating electric wheelchair battery range claims.
Electric Wheelchair Container Loading Guide for B2B Importers
A practical guide to planning electric wheelchair container shipments without relying on carton-count estimates alone.
Electric Wheelchair After-Sales Service SLA Guide for Distributors
An after-sales service framework for electric wheelchair distributors and importers.
Electric Wheelchair Portability: Folded Size vs Lifting Weight
Compare electric wheelchair folded size and lifting weight. Check storage openings, transport weight and practical loading before...
Electric Wheelchair Hill Climbing: Incline Ability Comparison for B2B Buyers
Incline rating often matters more than range when the end user lives on a slope.
More buying, compliance and technical guides in the news archive.
Browse all product & technologyarticles →Buying from MiniElephant
Compliance files, private label and wholesale supply.
Certifications
SFDA authorization, CE declaration, ISO 13485 and FDA listing records, plus the documents we can supply for due diligence.
Open page →OEM / ODM
Private label programmes: what can be changed, what stays fixed for safety, and how validation and documentation work.
Open page →Wholesale
Order structures, mixed-model containers, payment options, Incoterms and the documents that ship with every order.
Open page →Buyer Questions About MiniRedone-IV
Who is the MiniRedone-IV electric wheelchair designed for?
Folding electric wheelchair with tall-back seating configuration. It is offered for distributors, importers, mobility retailers and OEM/ODM projects building a comfort-focused power chair range. Suitability for an individual user and destination requirements must be reviewed for the selected configuration.
What makes the MiniRedone-IV different from other MiniRedone models?
Tall backrest (1250mm) at 43KG. Compare the full specification sheet with other models before selecting a range for your market.
What are the key MiniRedone-IV specifications?
The listed specification includes 43 KG net weight, 150 KG maximum load, ≈30 KM approximate range, 16Ah LiFePO₄ Lithium Battery battery, and Magnesium Alloy (one-piece die-cast) frame material. Confirm the final configuration before ordering.
Is MiniRedone-IV a foldable power wheelchair or motorized wheelchair?
Power wheelchair and motorized wheelchair are alternative terms for this electric wheelchair. The listed MiniRedone-IV folded dimensions are L830×W675×H1250 mm and net weight is 43 KG. Check these figures against storage space and transport arrangements; a folding design does not mean the chair is suitable for one-person lifting or airline travel.
Can I request a sample or wholesale quotation for MiniRedone-IV?
Yes. Wholesale orders start at 30 units per order, and mixed models can share that total in one container. Contact MiniElephant with your target market, quantity, packaging needs, and destination; sample terms, lead time, shipping, and warranty scope are confirmed in the quotation for the selected model.
Does MiniElephant support OEM or ODM for MiniRedone-IV?
OEM/ODM discussions are available for suitable projects. Branding, colors, packaging, manuals, configuration changes, MOQ, and approval requirements must be reviewed and confirmed before production.
